Modular Storage Components
Configurable Cell Assemblies

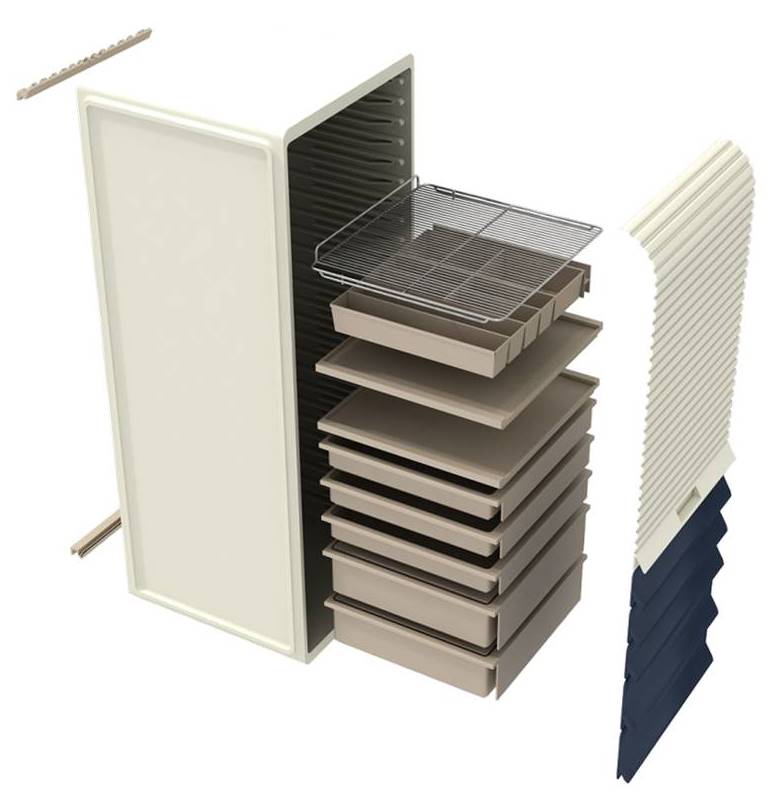

Cell Assemblies = Base Cell Unit + Interior Components + Enclosures
Designed to meet the needs of ever-changing work environments, Cell Assemblies are a modular storage system that can be created in different sizes and colors in a multitude of configurations.

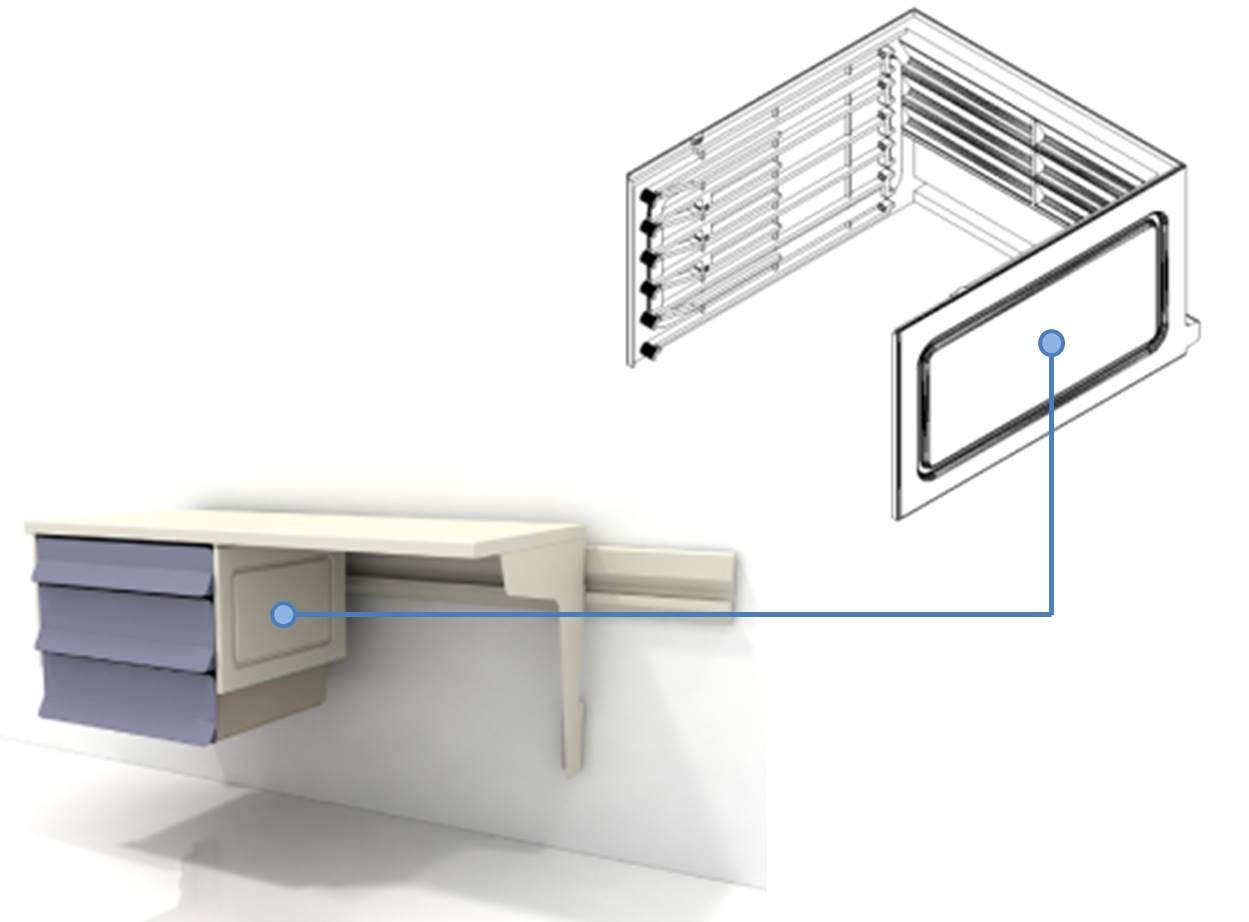

Cell Assemblies mount onto the Unicell Rail in an upper or below work surface position; or can configured with transport components.
Related Images
Base Cell Unit
| System Features | Resulting Benefits |
|---|---|
| One-piece structural polystyrene foam construction | Eliminates the creation of contamination catchalls and won’t degrade over time Suitable for automated washers of temperatures up to 180 degrees F |
| Slow-speed foam injection molding process along with the material creates a rigid Cell structure with a hardened protective wall | Cell structure won’t chip, rust, or dent Material does degrade due to friction from components rubbing |
| Polyurethane acrylic enamel finish with lightly stippled texture | High chemical resistance, withstands automated wash temperature, with same durability standard as business machine and electronic cabinetry market |
| Lifetime warranty on material defects and workmanship | Provides costs savings on future capital equipment investment |
| Inherent modular logic and non-permanent attachment to the Rail | Easily re-configurable to save time and minimize disruption |
Interior Components
| System Features | Resulting Benefits |
|---|---|
| Trays and Interior Shelf have similar base material properties as the Cell | Can withstand automated cart washes No cracks or crevices that act as contaminant catchalls |
| Load capacity of Trays - 40lbs Load capacity of Interior Shelf – 50lbs Load capacity of Wire Components – 50lbs | Capable of being fully loaded with materials to maximize available storage space |
| All Interior Components interchangeable with one another | Allows for flexible planning of Cell interiors and quick reconfiguration |
| All interior components come with positive stops to prevent accidental removal | Helps prevent material breakage and work injury |
Enclosures
| System Features | Resulting Benefits |
|---|---|
| DRAWER FRONTS One-piece structural polystyrene foam construction (same as Base Cell Units) Full width pull with rounded corners Easily snaps on and off Trays with no additional hardware required for attachment | DRAWER FRONTS Same durability standard as business machine and electronic cabinetry market Full access to pull from either left side, middle, or right side Re-configurable between Trays : easily replaceable if new color is desired |
| ROLL FRONT Non-permanent attachment within Cell and constructed of flexible polypropylene | ROLL FRONT Easily removed for cleaning and won’t crack or tear |
| LIFT FRONT Pull is full width and angled outward 7 different ABS plastic colors with opportunity for quantity-based custom color Clear plastic option | LIFT FRONT Easy to operate Full access to pull from either left side, middle, or right side Allows for color variety when selecting a facility finish color scheme Clear option allows quick visual access into Cell to identify contents |
Shelf Units
Available in an angled or flat shelf orientation, Shelf Units come in a variety of widths and heights and hang from the Unicell Rail.
Shelf Units can also have solid or glass doors added on to become enclosed cabinet units. The doors can also be specified with locking capability.
Related Images
Features & Benefits Highlights
| System Features | Resulting Benefits |
|---|---|
| Available in 2, 3, and 4 shelf high units with nominal widths of 24”, 30”, 36”, 42″, and 48” | Allows for flexibility in modular planning and shelf units are easily interchangeable with Cell Assemblies |
| Mounts onto the Rail with an adjustable three-height position key | Utilizes ‘off-floor’ capability provided by the Rail system |
| Shelves can be specified and installed in a flat or angled orientation Shelf unit doors that are solid or with a tempered glass insert can be added : doors are lockable as an option | Flexibility of choice according to facility storage requirements A Shelf Unit installed with angled shelves can easily be converted into a unit with flat shelves with doors. |
